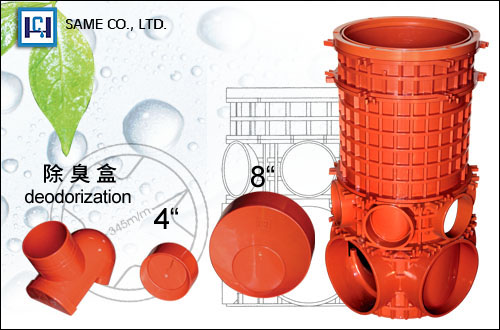

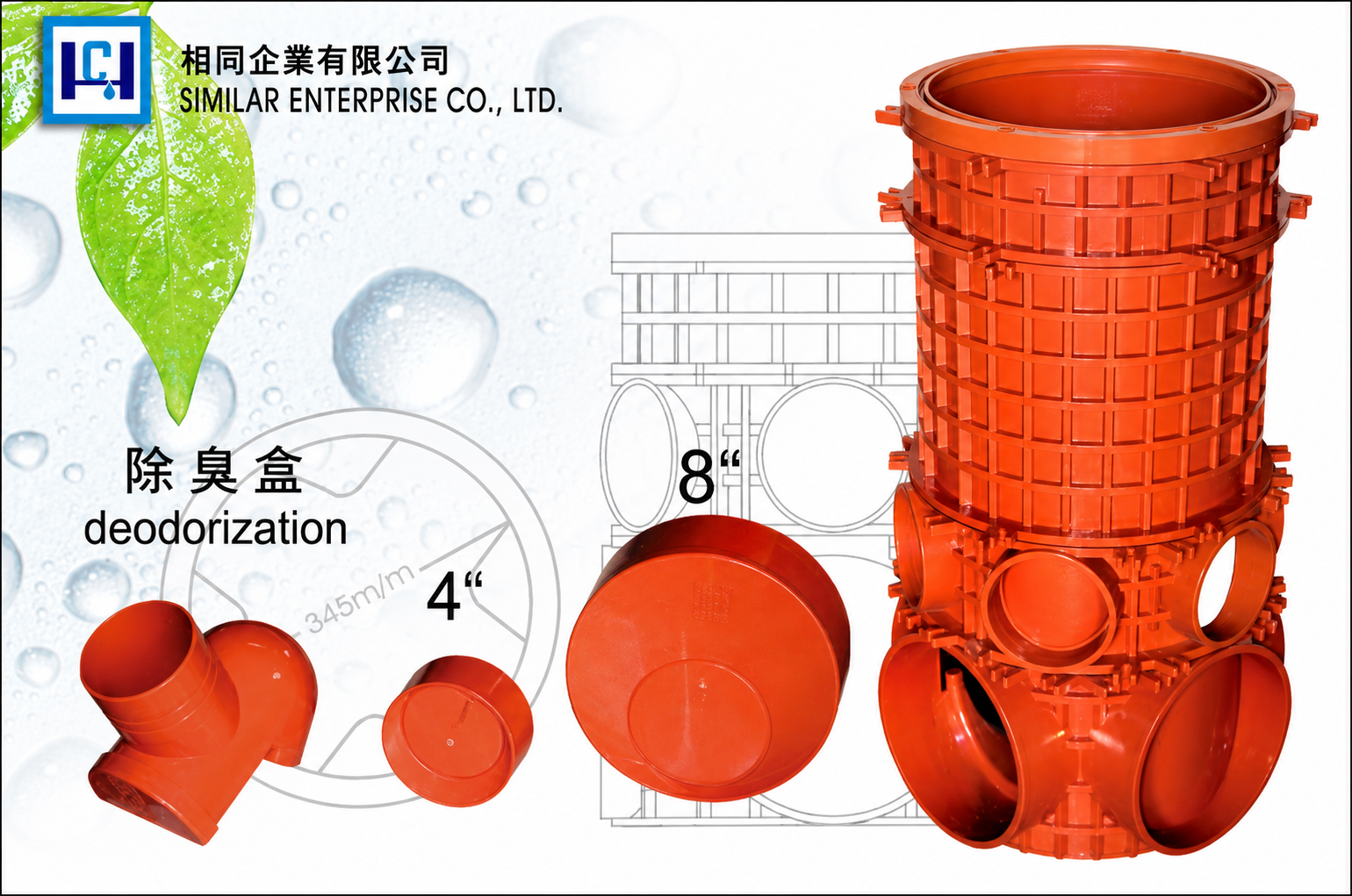

Sewage Piping Box-D345m/m

  1. Manufactured from high-strength engineering plastic composite material, capable of withstanding a vertical compressive load of up to 12 tons.
  2. The circular design features integrated 4" and 8" socket connections at multiple angles, allowing inlet pipes to be connected vertically from various directions without requiring pipe bending or additional fabrication.
  3. Each socket is fitted with an EPDM rubber sealing gasket to ensure a watertight connection while providing vibration absorption and accommodating minor ground movement to minimize the risk of leakage.
  4. The lightweight engineering plastic construction allows easy handling, transportation, and installation without the need for cranes, making it suitable for confined construction areas such as narrow alleys. The modular design also allows the chamber height to be adjusted to meet project requirements.
  5. All sections are assembled using SUS304 stainless steel bolts, providing excellent corrosion resistance and long-term durability.
  6. The engineering plastic body is electrically non-conductive, enhancing operational safety.

Quantity:

NT$0

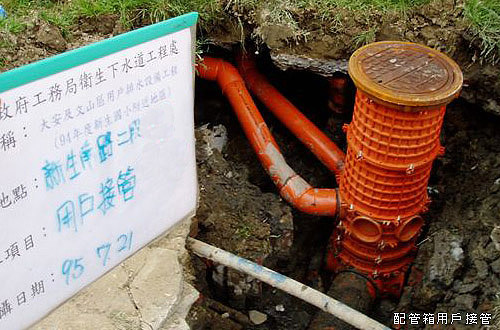

Performance -Taipei City Public Sewerage System Project


Feature :

1. High Strength Composite Engineering Plastic
Made from high-performance composite engineering plastic with excellent structural strength. Tested to withstand compressive loads up to 12 tons.

2. Multi-Directional Octagonal Design
Available in 4-inch and 8-inch models. The octagonal body allows vertical pipe connections from multiple directions, eliminating the need for pipe bending or additional processing.

3. Superior Sealing with EPDM Rubber Gaskets
Each pipe socket is fitted with EPDM sealing gaskets to ensure leak-proof performance, prevent groundwater contamination, absorb vibration, and reduce leakage caused by minor displacement.

4. Lightweight & Easy Installation
Compared with traditional concrete manholes, the modular plastic structure is lightweight, easy to transport, and simple to install without cranes, making it ideal for narrow working spaces and alleyways.

5. SUS304 Stainless Steel Fasteners
Connected with SUS304 stainless steel bolts for long-term durability and corrosion resistance.

6. Non-Conductive Material
The plastic body is electrically non-conductive, providing additional safety.

Applications :

  • Municipal Sewerage Systems
  • Telecommunication and Power Utility Manholes
  • Residential Wastewater Pipeline Connections
  • Building Corner Catch Basins

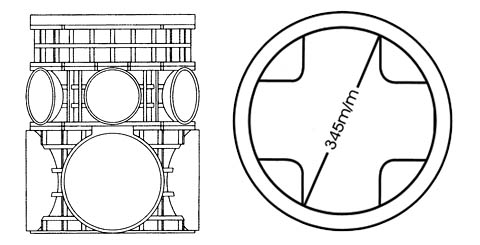

Specifications :

Diameter 345m/m

(Modular construction with flexible height adjustment to meet site requirements.)

  Riser Section Riser Section Riser Section

Ø4''Six holes

Middle Section

Ø8''Four holes

Base Section
Height
(mm)		 25 100 300 150 255
